Technology is introduced
A, zinc, silver is silver oxide battery as the anode, a cathode zinc, has zinc oxide saturated potassium hydroxide solution for alkaline battery electrolyte. It has small volume, light weight, large capacity, high than energy and power, small self-discharge loss, stable discharge voltage, etc.

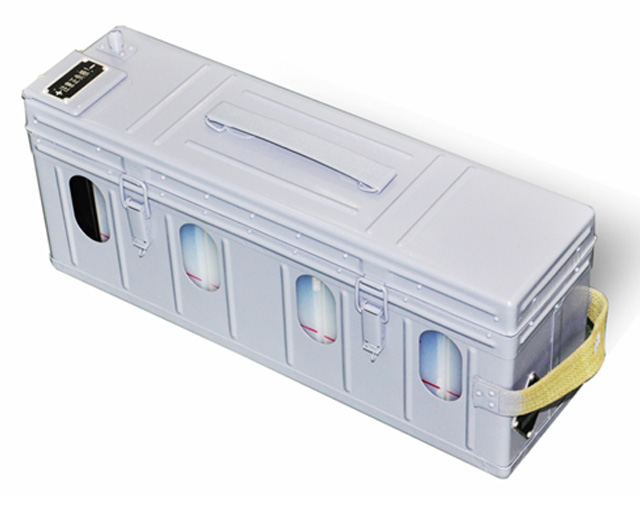

Second, the series of battery is suitable for the start of the military equipment, unmanned aerial vehicles (uavs) and other equipment power, aviation for navigation, special lighting, communications, precision instruments and meters and telemetry equipment such as dc power.
Product specification：
型號 Models | 額定容量 Rated Capacity （Ah） | 額定電壓 Nominal Voltage (V) | 最大外形尺寸 Dimension（mm） | 最大重量Weight （kg） | 電液量Electrolyte Volume （mL） | 極柱螺紋 | 殼體材料 | 國外型號 | ||
長（L） | 寬(W) | 高(H) | ||||||||
XY20 | 20 | 1.5 | 41 | 39 | 120 | 0.36 | 47 | M6 | 尼龍 | --- |
XY25 | 25 | 1.5 | 41 | 39 | 120 | 0.38 | 45 | M6 | 尼龍 | --- |
XY50 | 50 | 1.5 | 56 | 53 | 160 | 0.93 | 135 | M6 | 尼龍 | --- |
XY100 | 100 | 1.5 | 81 | 48 | 183 | 1.50 | 270 | M8 | 尼龍 | --- |
XY150 | 150 | 1.5 | 80 | 51 | 237 | 2.10 | 270 | M14 | 尼龍 | --- |
XY230* | 230 | 1.5 | 91.5 | 64 | 64 | 3.70 | 625 | M10 | 尼龍 | --- |
XY600* | 600 | 1.5 | 121 | 103 | 103 | 10.5 | 1450 | M14 | 尼龍 | --- |

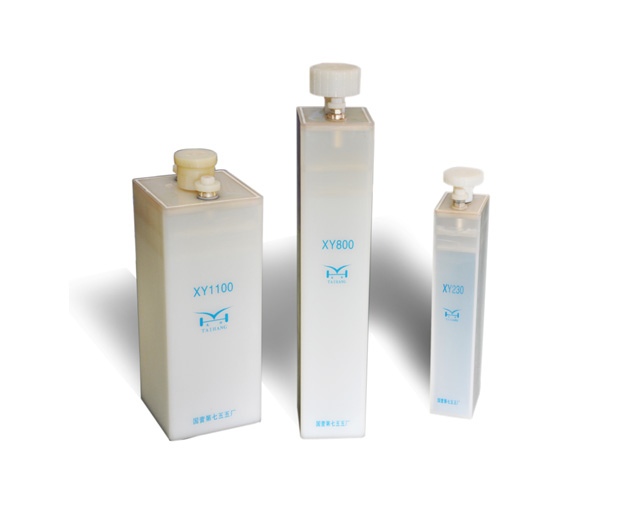

XY800* | 800 | 1.5 | 116 | 98.2 | 98.2 | 12.8 | 1625 | M10 | 尼龍 | --- |
XY1100* | 1100 | 1.5 | 148 | 139 | 139 | 15.3 | 1900 | M10 | 尼龍 | --- |
XYG45-(3) | 45 | 1.5 | 57 | 53 | 160 | 0.95 | 125 | M10 | 尼龍 | --- |
XYG45-(3)G | 45 | 1.5 | 57 | 53 | 160 | 0.95 | 125 | M10 | 尼龍 | --- |
XYG55 | 55 | 1.5 | 57 | 53 | 175 | 0.98 | 135 | M10 | 尼龍 | --- |
XYG80 | 80 | 1.5 | 60 | 44 | 247 | 1.35 | 220 | M10 | 聚砜 | --- |
XYG85 | 85 | 1.5 | 81 | 48 | 183 | 1.45 | 200 | M8 | 聚砜 | --- |
XYG110 | 110 | 1.5 | 80 | 51 | 237 | 2.10 | 270 | M16 | 尼龍 | --- |
XYG110-（1） | 110 | 1.5 | 80 | 50.5 | 237 | 2.11 | 270 | M16 | 聚砜 | --- |
XYG200 | 200 | 1.5 | 91 | 62 | 314 | 3.70 | 500 | M14 | 尼龍 | --- |
2XY8 | 8 | 3.0 | 40 | 39 | 120 | 0.38 | 48 | M5 | 尼龍 | --- |
2XYG8 | 8 | 3.0 | 41 | 39 | 120 | 0.36 | 44 | M6 | 尼龍 | --- |
6XYG20 | 20 | 9.0 | 118 | 57 | 160 | 2.10 | 270 | M6 | 尼龍 | --- |
15XYG45-(3) | 45 | 22.5 | 434 | 131 | 224 | 17.9 | 1875 | M10 | 不銹鋼 | --- |
15XYG45-(3)A | 45 | 22.5 | 512 | 131 | 218 | 18.3 | 1875 | M10 | 不銹鋼 | --- |
15XYG45-(3)G | 45 | 22.5 | 434 | 131 | 227 | 17.9 | 1875 | M10 | 不銹鋼 | --- |
15XYG55 | 55 | 22.5 | 512 | 131 | 218 | 20.0 | 2025 | M10 | 不銹鋼 | --- |
2XYG80 | 80 | 3.0 | 78 | 70 | 245 | 3.07 | 440 | M8/M14 | 聚砜 | --- |
