Performance characteristics:

Large capacity, high specific power, high capacity, large current discharge, product performance is stable;

Long service life: standard state 1 c to charge and discharge cycles can reach more than 1500 times;

Wide application environment: the product is high and low temperature to accept ability to charge and discharge, stable performance;

Safety performance is strong, scientific structure design, the overcharge, discharge, such as acupuncture, extrusion safety performance test on outstanding;

Better consistency: a new generation of patented formula, the latest special processing technology, guarantee the stability of multi cell battery in series of consistency;

Green environmental protection, no pollution, no midnight, placed any direction using reliable safety. National green environmental protection new energy products;

18650-1400 mah lithium iron phosphate battery is a long cycle life, safety and environmental protection products, stable discharge voltage, high temperature resistant performance is good, the temperature of 60 ℃ condition to devolve power efficiency up to 95%

；

Technical characteristic curve

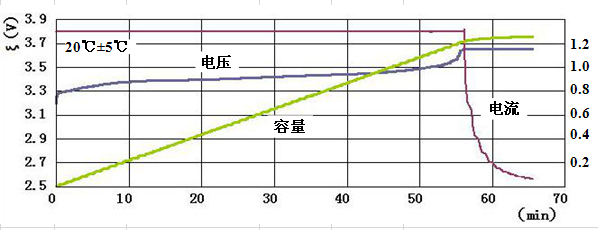

Lithium iron phosphate power lithium ion battery performance curve

(IFR18650P-1300mAh)

充電：CC-CV：1I5A-3.65V

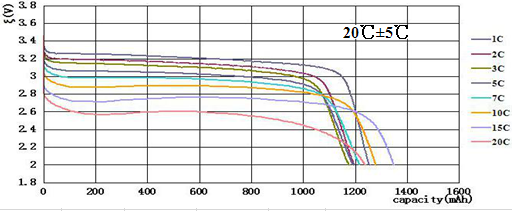

Lithium iron phosphate power lithium ion battery performance curve ratio(IFR18650P-1300mAh)

charging：CC-CV：1I5A-3.65V  discharge：CC：Different ratio of current（E.V：2.0V）

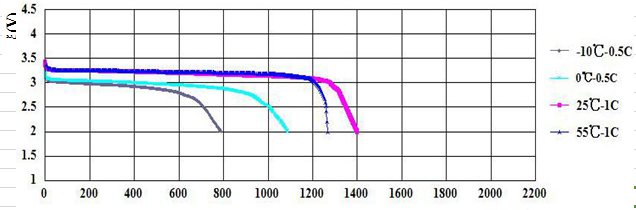

Lithium iron phosphate power lithium-ion battery discharge performance of different temperature curve

(IFR18650P-1300mAh)

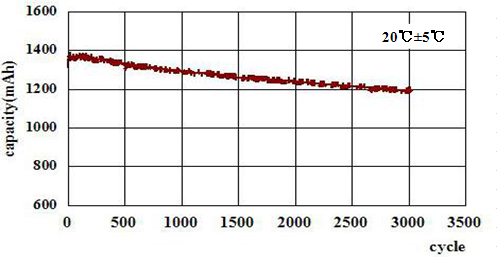

Lithium iron phosphate power lithium ion battery cycle curve(IFR18650P-1300mAh)

The loop condition：chargingCC-CV：3I5A-3.65V discharge：3I5A(E.V:2.0V)

Areas of application:

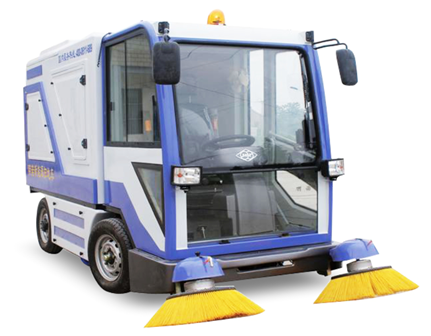

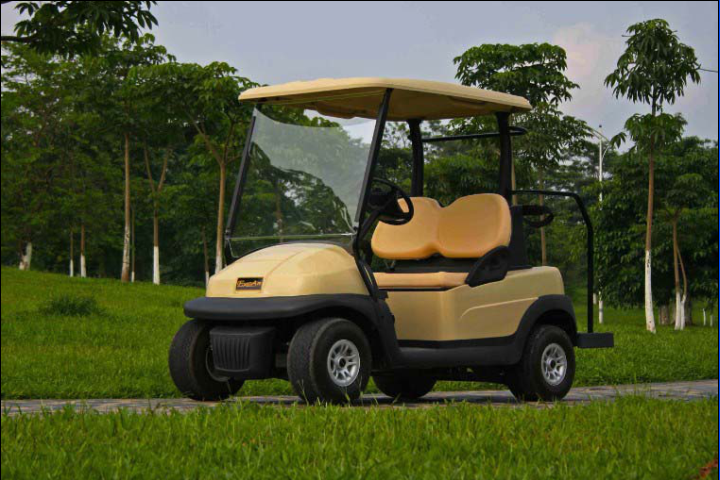

Widely used in pure electric cars, hybrid cars, electric buses, golf carts, tourist sightseeing car, boat, car, etc.
