Technology is introduced
A bag, cadmium nickel battery has excellent electrical performance, long service life, rigid structure, resistant to over charge over discharge, battery, high reliability, maintenance is simple and convenient. IEC60623 standard completely.
Two, this series of battery is widely used in railway vehicle, communication station, electric appliances, weibo communications, lighting, UPS, dc power device standby power supply and dc operation power, as well as the diesel engine, dc motor startup power source, means of transport of dc power can also be used with solar energy, wind power equipment of form a complete set of energy storage.
specification

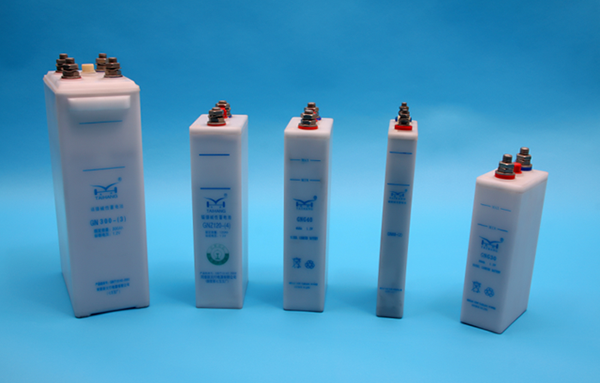

Bag high-magnification cadmium nickel battery
Paramenters of high and medium rate Ni-Cd battery
型號 Models | 額定容量 Rated Capacity （Ah） | 最大外形尺寸 Dimension（mm） | 重量 Weight （kg） | 電解液Electrolyte Volume （L） | 極柱螺紋 | 殼體材料 | 循環(huán)壽命 | 國外型號 | ||
長（L） | 寬(W) | 高(H) | ||||||||
GNG20 | 20 | 139 | 79 | 291 | 5.00 | 1.50 | M16 | ABS | ≥500次 | KH20P |
GNG30 | 30 | 139 | 79 | 291 | 5.00 | 1.40 | M16 | ABS | ≥500次 | KH30P |
GNG40 | 40 | 139 | 79 | 361 | 6.50 | 1.72 | M16 | ABS | ≥500次 | KH40P |
GNG50 | 50 | 139 | 79 | 361 | 6.50 | 1.70 | M16 | ABS | ≥500次 | KH50P |
GNG60 | 60 | 165 | 105 | 350 | 9.30 | 1.85 | M20×1.5 | ABS | ≥500次 | KH60P |
GNG70 | 70 | 165 | 105 | 350 | 9.30 | 1.80 | M20×1.5 | ABS | ≥500次 | KH70P |
GNG80 | 80 | 165 | 105 | 350 | 9.30 | 1.75 | M20×1.5 | ABS | ≥500次 | KH80P |
GNG100 | 100 | 167 | 162 | 343 | 13.5 | 3.10 | M20×1.5 | ABS | ≥500次 | KH100P |
GNG120 | 120 | 167 | 162 | 343 | 13.5 | 3.08 | M20×1.5 | ABS | ≥500次 | KH120P |
GNG150 | 150 | 284 | 172 | 348 | 24.5 | 5.83 | M20×1.5 | ABS | ≥500次 | KH150P |
GNG200 | 200 | 291 | 174 | 501 | 39.0 | 8.5 | M20×1.5 | ABS | ≥500次 | KH200P |
GNG250 | 250 | 291 | 174 | 501 | 39.0 | 8.0 | M20×1.5 | ABS | ≥500次 | KH250P |
GNG300 | 300 | 291 | 174 | 501 | 39.0 | 7.5 | M20×1.5 | ABS | ≥500次 | KH300P |
GNG400 | 400 | 397 | 183 | 564 | 66.0 | 16 | M20×1.5 | ABS | ≥500次 | KH400P |
GNG500 | 500 | 397 | 183 | 564 | 66.0 | 15 | M20×1.5 | ABS | ≥500次 | KH500P |
Cadmium nickel bag ratio in the battery、
Paramenters of high and medium rate Ni-Cd battery
型號 Models | 額定容量 Rated Capacity （Ah） | 最大外形尺寸 Dimension（mm） | 重量 Weight （kg） | 電解液Electrolyte Volume （L） | 極柱螺紋 | 殼體材料 | 循環(huán)壽命 | 國外型號 | ||
長（L） | 寬(W) | 高(H) | ||||||||
| GNZ10 | 10 | 96 | 74 | 237 | 3.0 | 0.6 | M10×1 | PP | ≥500次 | KM10P |
| GNZ12 | 12 | 96 | 74 | 237 | 3.0 | 0.6 | M10×1 | PP | ≥500次 | KM12P |
| GNZ15 | 15 | 124 | 40 | 205 | 3.2 | 0.7 | M10×1 | PP | ≥500次 | KM15P |
GNZ20 | 20 | 142 | 66 | 227 | 3.50 | 1.10 | M10×1 | ABS | ≥500次 | KM20P |
GNZ30 | 30 | 142 | 66 | 227 | 3.50 | 1.0 | M10×1 | ABS | ≥500次 | KM30P |
GNZ40 | 40 | 139 | 79 | 291 | 5.00 | 1.50 | M16 | ABS | ≥500次 | KM40P |
GNZ50 | 50 | 139 | 79 | 291 | 5.00 | 1.30 | M16 | ABS | ≥500次 | KM50P |
GNZ60 | 60 | 139 | 79 | 291 | 5.00 | 1.20 | M16 | ABS | ≥500次 | KM60P |
GNZ60-(2) | 60 | 138 | 78 | 290 | 5.50 | 1.30 | M16 | ABS | ≥500次 | KM60P |
GNZ75 | 75 | 139 | 79 | 361 | 6.50 | 1.67 | M16 | ABS | ≥500次 | KM75P |
GNZ80 | 80 | 139 | 79 | 361 | 6.50 | 1.6 | M16 | ABS | ≥500次 | KM80P |
GNZ85 | 85 | 165 | 105 | 350 | 9.3 | 2.0 | M20×1.5 | ABS | ≥500次 | KM85P |
GNZ100 | 100 | 165 | 105 | 350 | 9.3 | 1.75 | M20×1.5 | ABS | ≥500次 | KM100P |
GNZ100-(3) | 100 | 140 | 79 | 362 | 7.0 | 1.70 | M16 | ABS | ≥500次 | KM100P |
GNZ120 | 120 | 167 | 162 | 343 | 12.5 | 2.92 | M20×1.5 | ABS | ≥500次 | KM120P |
GNZ120-(4) | 120 | 141 | 90 | 363 | 7.3 | 1.90 | M16 | PP | ≥550次 | KM120P |
